J hook with spring steel beam clamp,swivel

J hook with spring steel beam clamp,swivel

short description:


Product Detail

Product Tags

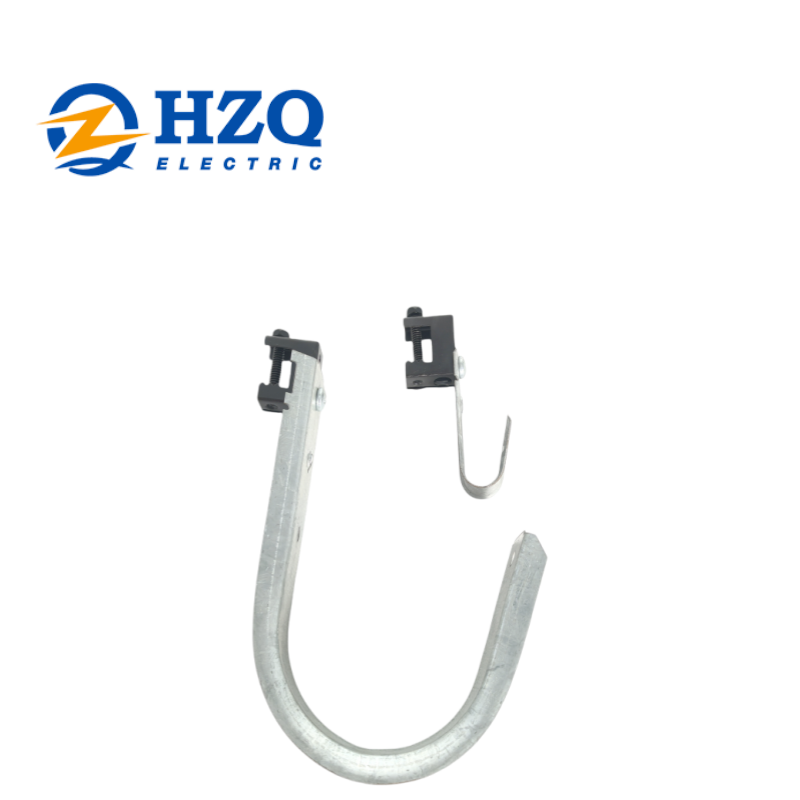

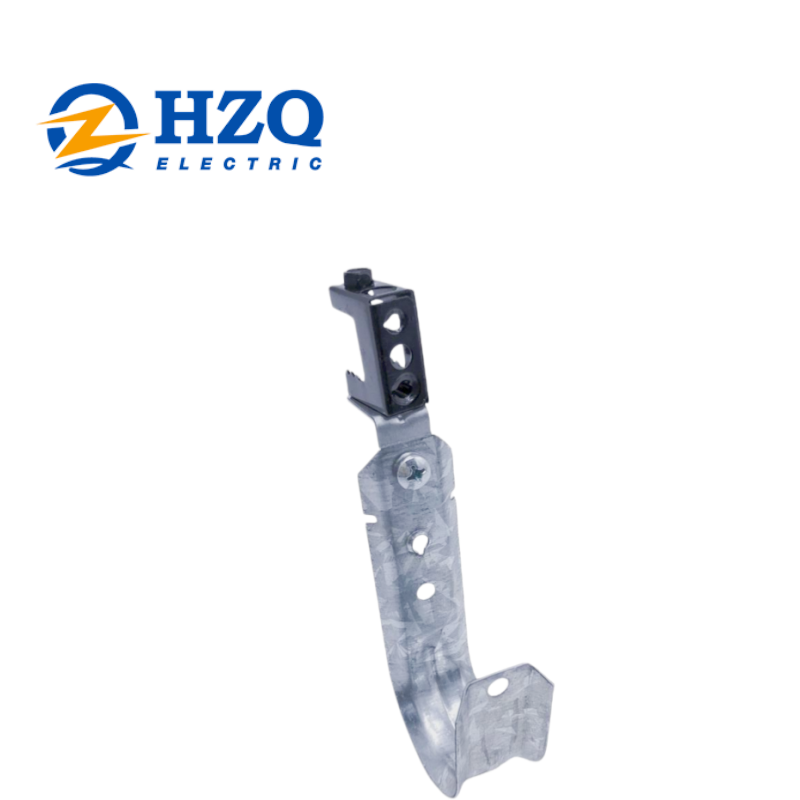

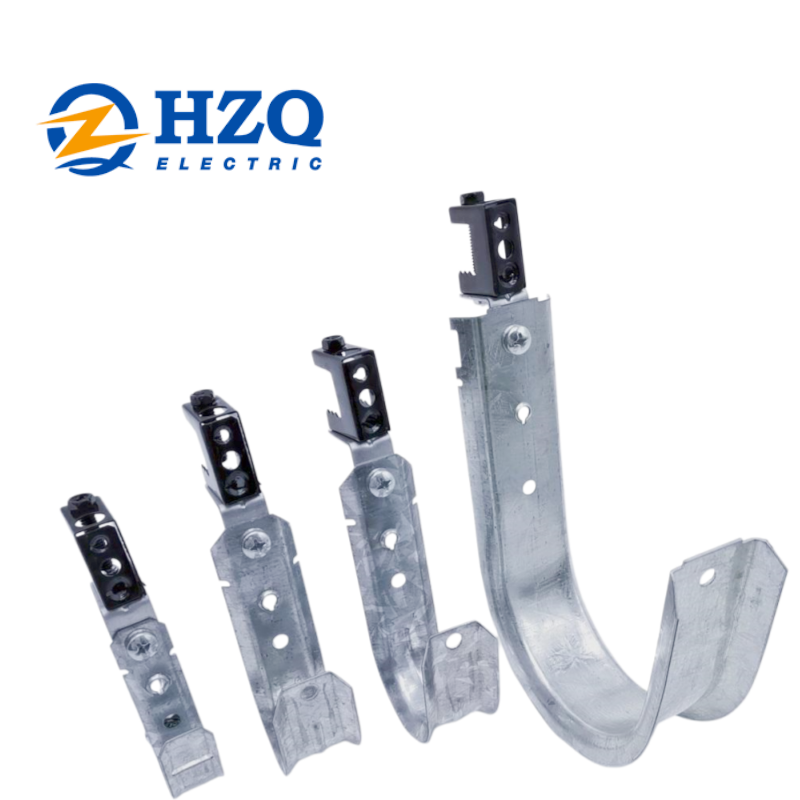

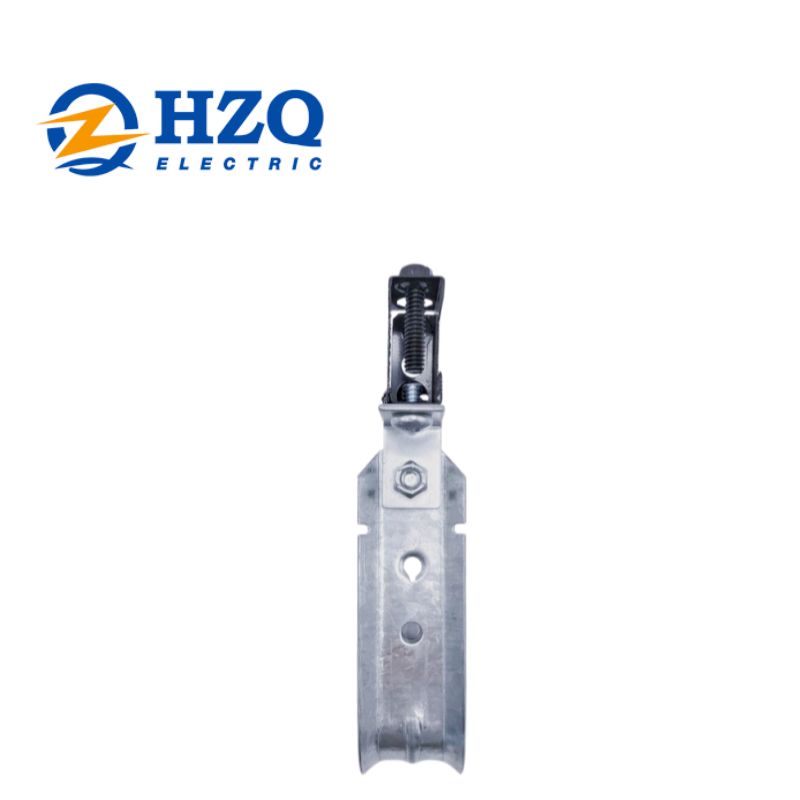

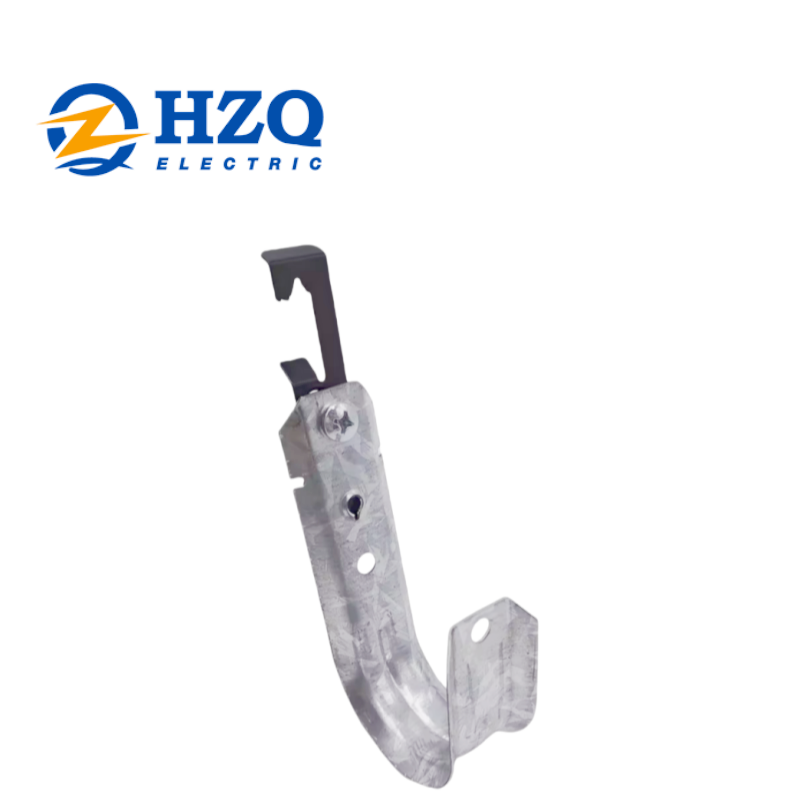

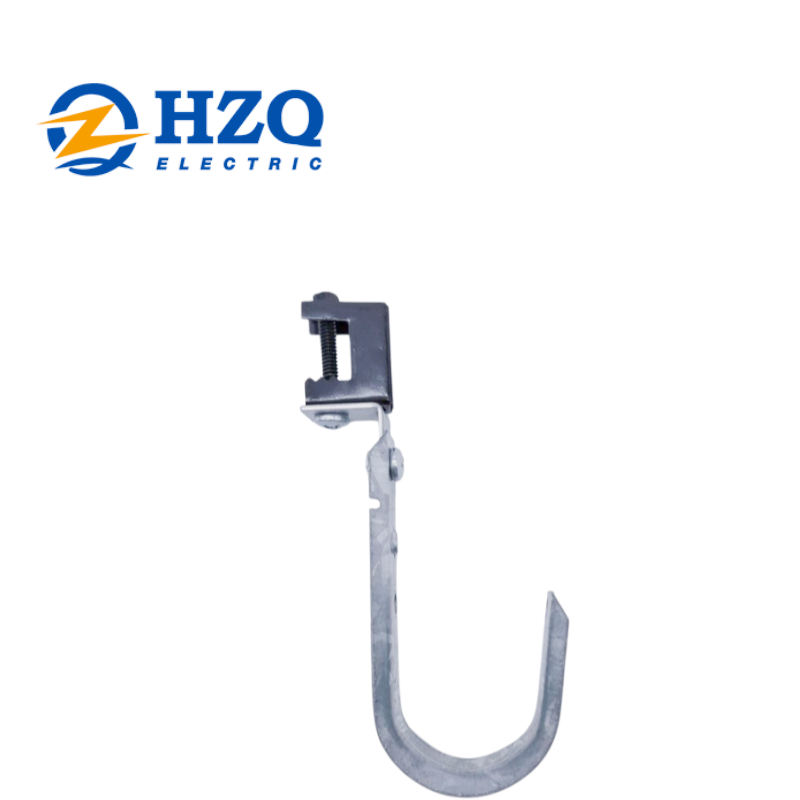

1.  Production Description:  J HOOK WITH 360 DEG STAMPED STEEL BEAM CLAMP

2.  Size: 3/4”;1-5/16”;2”;4”;6”

3.  Features:

Heavy duty Pre-galvanized steel

Meet requirement for structured cabling system

With 360 deg stamped steel beam clamp

4.Cable capacity

¾” J Hook:     16 Cat 5/5e, or 16 Fiber Optic, or 10 Cat 6 Cables, or inner duct

1 5/16” J Hook:   50 Cat 5/5e, or 50 Fiber Optic, or 30 Cat 6 Cables, or inner duct

2” J Hook :     80 Cat 5/5e, or 80 Fiber Optic,  or 50 Cat 6 Cable, or inner duct

4” J Hook:     300 Cat 5/5e, or 300 Fiber Optic,or 185 Cat 6 Cable, or innerduct



5. Loading capacity: 60lbs

6.Please go to download page to download DATA SHEET of the J hooks products

Cataloge_G35L41微信图片_20221020140136ZQJHxxACSSBC-1   ZQJHxxACSSBC-4ZQJHxxACSSBC-2ZQJHxxACSSBC-3
