4 Square box – 1-12 deep – drawn
Features • Drawn • 1-1/2″ deep • Available in multiple KO sizes with raised ground emboss with installed 10/32 ground screw and pigtail where noted Applications • 4″ square drawn junction boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices. • Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions Standard Material • Galvanized stee -
4 Square extension – 1-12 deep – drawn
Features • 1-1/2″ deep • 21 cubic inches • Add to junction boxes for additional wiring capacity Applications • Increases wiring capacity • Provides access for additional conduit runs and electrical wire Standard Material • Galvanized steel -
4 Square boxes – 1-12 deep – welded
Features • Welded • 1-1/2″ deep • Available in multiple KO sizes, MC clamps and eccentric KOs and pigtail where noted Applications • 4″ square welded junction boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices • Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions Standard Material • Galvanized steel -
4 Square box – 2-18 deep – welded
Features • Welded • 2-1/8″ deep offer extra cubic capacity • Available in multiple eccentric & concentric KO sizes with MC clamps, raised ground emboss with 10/32 ground screw and pigtail where noted Applications • 4″ square welded junction boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices • Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more... -
4 Square box – 2-18 deep – drawn
Features • Drawn • 2-1/8″ deep offer extra cubic capacity • 29 cubic inches • Available in multiple KO sizes and raised ground emboss with installed 10/32 ground screw where noted Applications • 4″ square drawn junction boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices • Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions Standard Mate... -
4 Square two device switch box – 2-18 deep – drawn
Features • Drawn • 2-1/8″ deep offer extra cubic capacity • 29 cubic inches • Available in multiple KO sizes and raised ground emboss with installed 10/32 ground screw where noted Applications • 4″ square drawn junction boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices • Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions Standard Mate... -

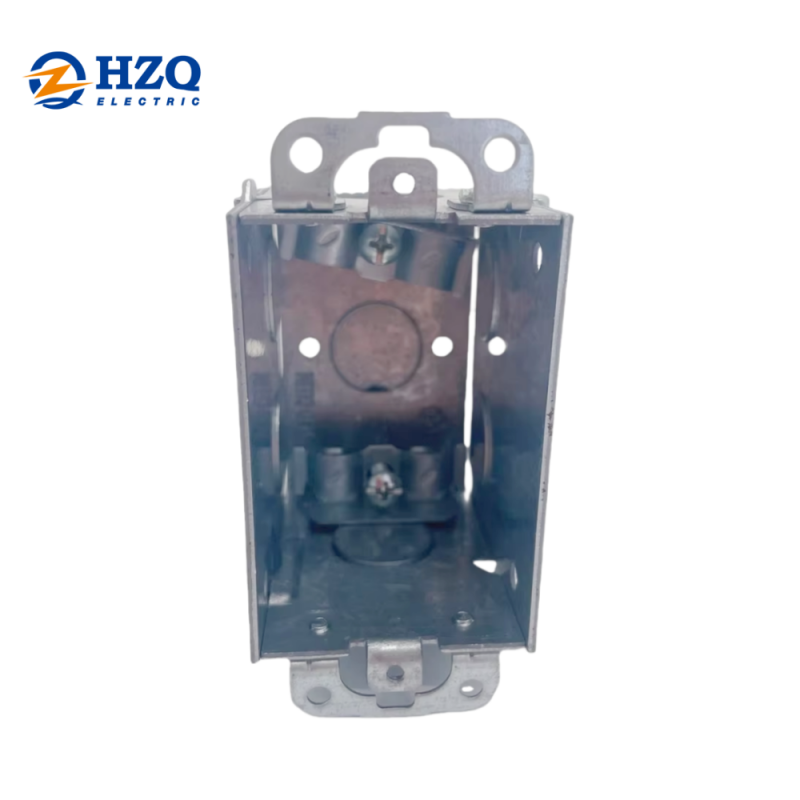

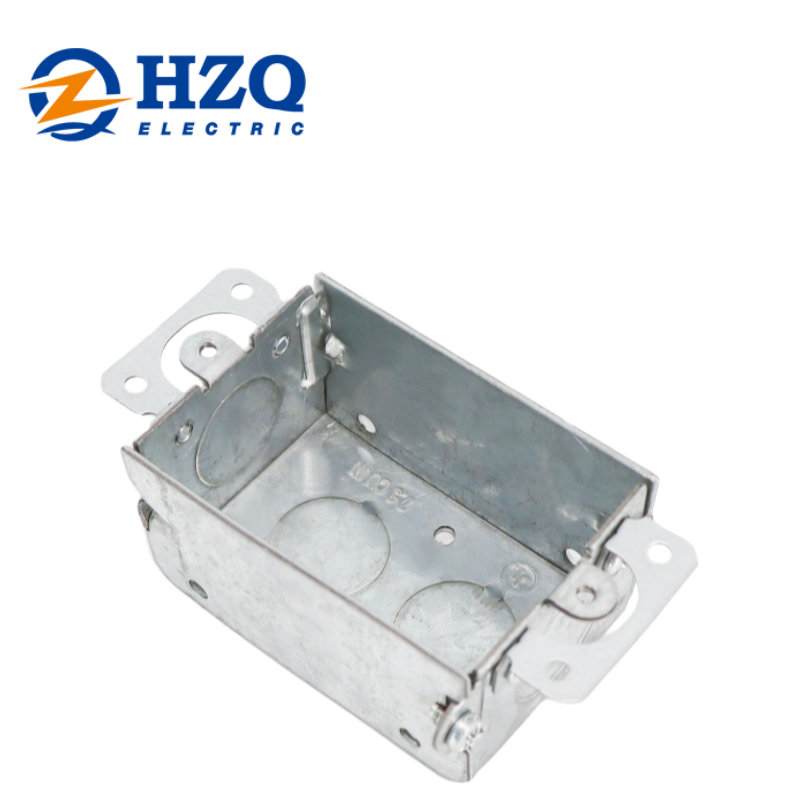

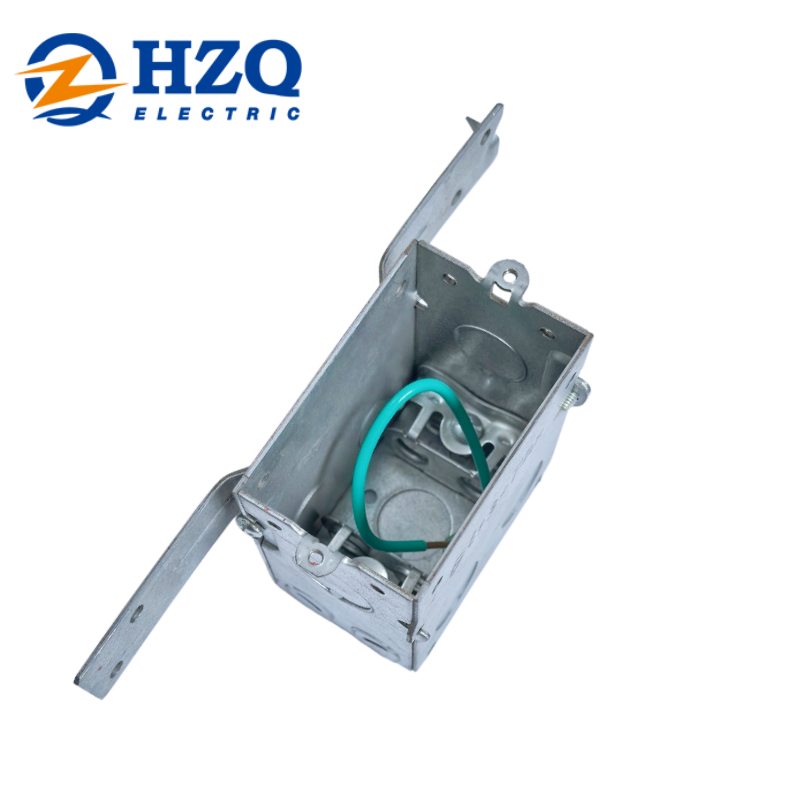

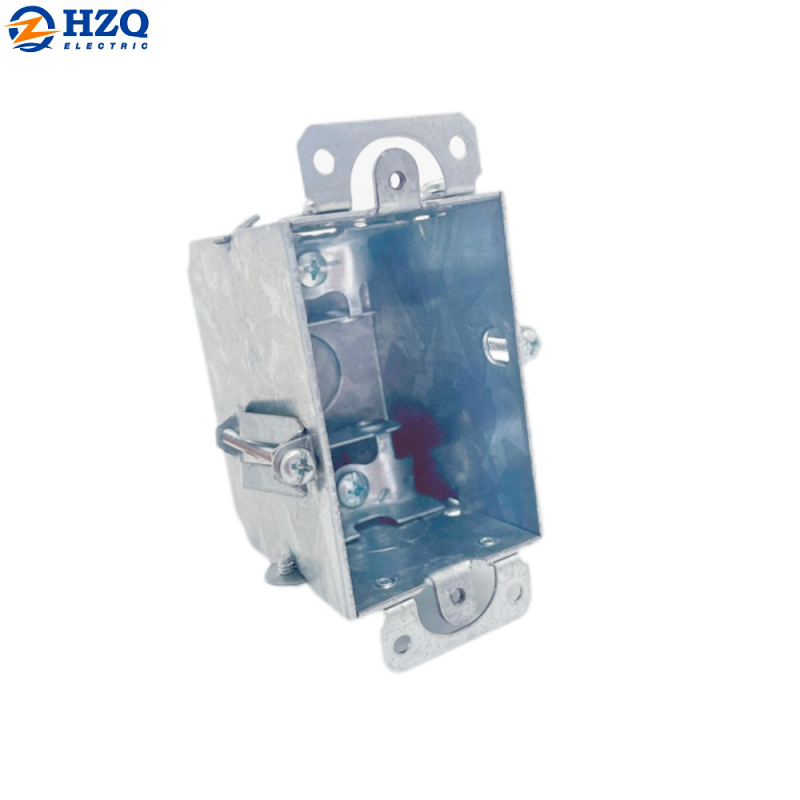

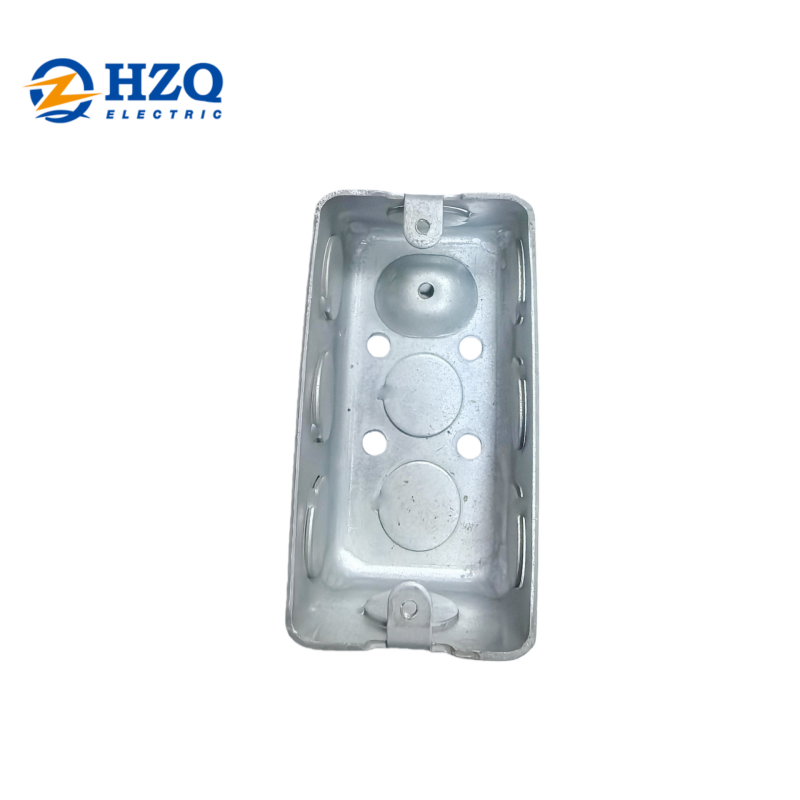

Gang boxes – 1-5/8 deep – welded
Features • 1- 5/8″ deep • Welded • Available with 1/2″ and 3/4″ concentric KOs • Available in 2 thru 8 gang Applications • Use when more than two devices or outlets are required in one box • Multi-Gang Switch boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices • Use to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions Standard Material • Galvanized steel -

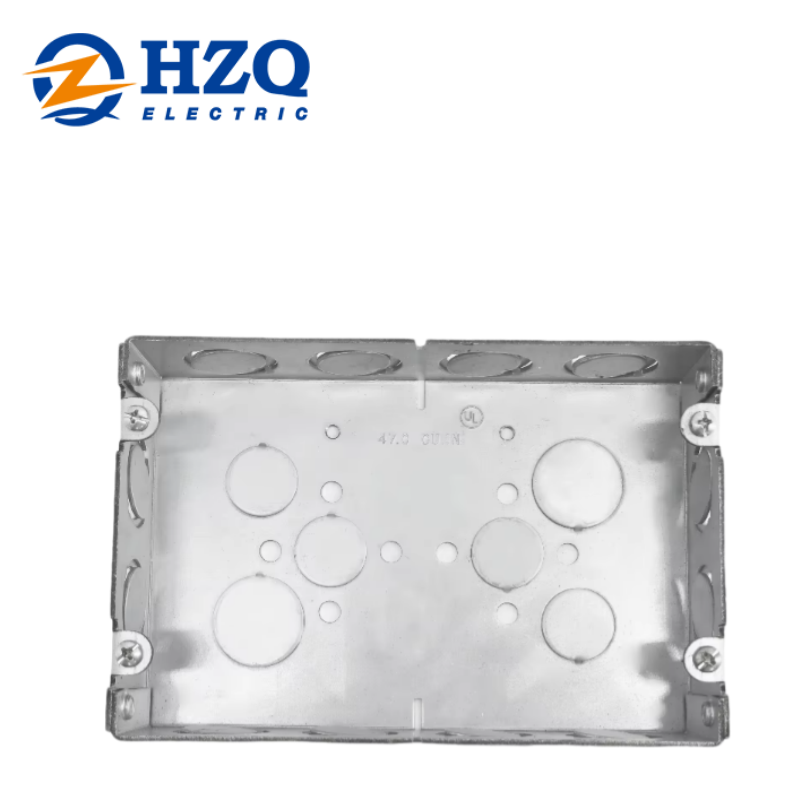

Gang boxes – 2-1/2 deep – welded
Features • 2- 1/2″ deep • Welded • Available with 1/2″ and 3/4″ concentric KOs • Available in 2 thru 6 gang Applications • Use when more than two devices or outlets are required in one box • Multi-Gang Switch boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices • Use to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions Standard Material • Galvanized steel -

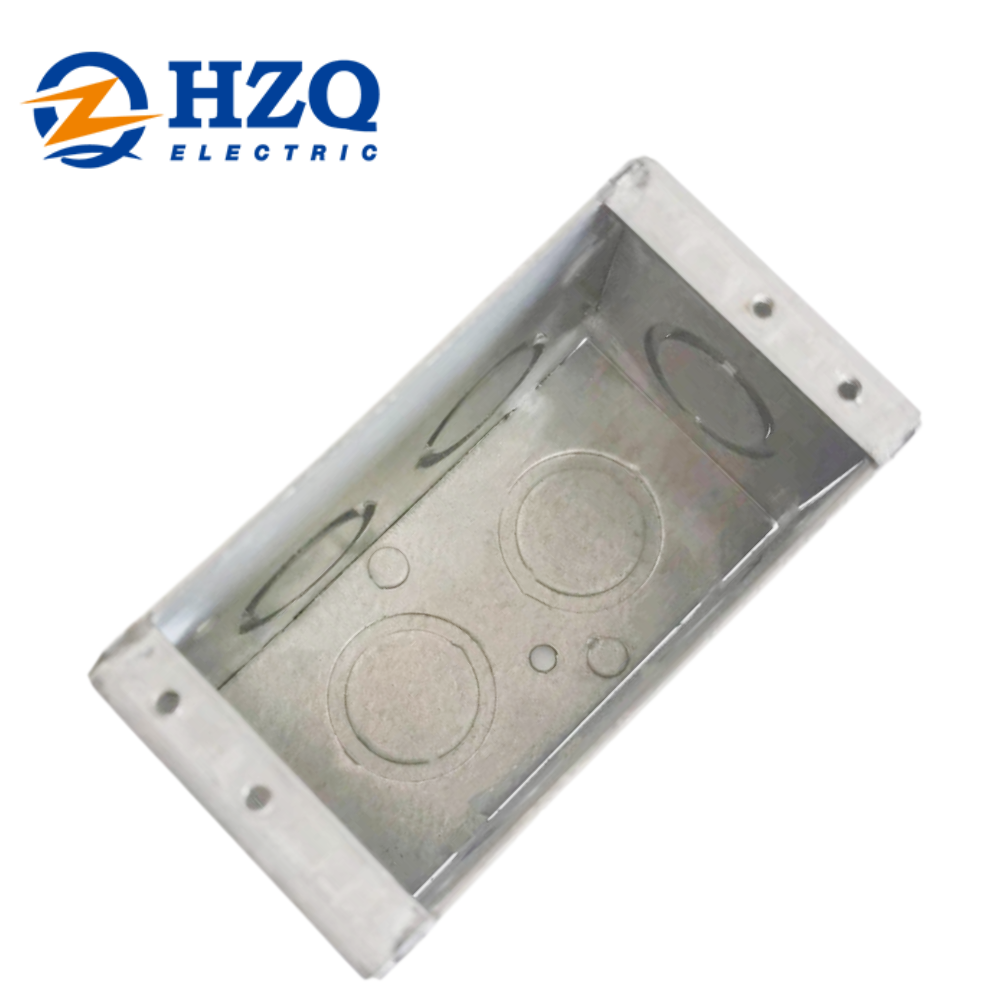

Masonry boxes – 2-1/2 deep
Features • Welded • 2- 1/2″ deep • Concentric KOs • 6/32 Tab holes for mounting devices • Available in 1 thru 5 gang Applications • Solid, 2-1/2″ deep, multi-gang masonry boxes are used for mounting switches, plugs, outlets and other electronic and electrical devices in masonry, brick and 4″ block walls. • Extra deep design allows for deep devices, numerous wires, switches and other electronic and electrical devices. Standard Material • Galvanized steel -
Masonry boxes – 3-1/2 deep
Features • Welded • 3- 1/2″ deep • concentric KOs • 6/32 Tab holes for mounting devices • Available in 1 thru 6 gang Applications • Solid, multi-gang masonry boxes are used for mounting switches, plugs, outlets and other electronic and electrical devices in masonry, brick and 4″ block walls. • Extra deep design allows for deep devices, numerous wires, switches and other electronic and electrical devices. Standard Material • Galvanized steel -
Multi – device switch boxes – 2-1/2 deep – welded
Features • 2- 1/2″ deep • Welded • Available with 1/2″ & 3/4″ concentric KO’s with FL bracket • Available in 3 thru 5 gang Applications • Use when more than two devices or outlets are required in one box • Multi-gang switch boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices • Use to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions Standard Ma... -

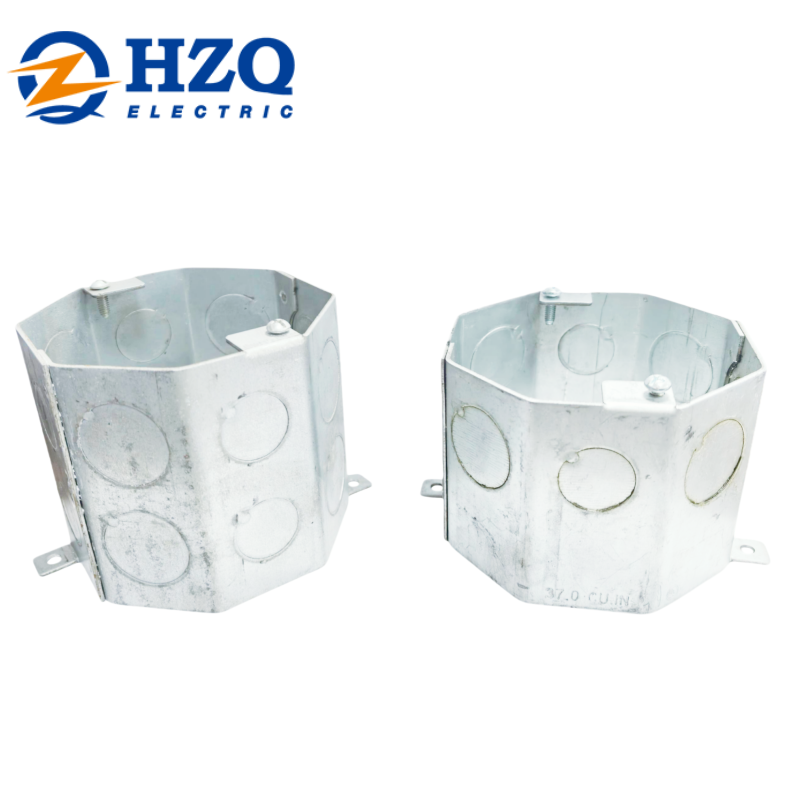

Concerete rings and covers
Features • Available with 1/2″ and 3/4″ KO • Available in multiple depths • Mounting tabs allow for quick and easy installation • Sealed KOs prevent wet concrete and water from entering the box Applications • Octagon concrete boxes with 1/2″ & 3/4″ side knockouts are used in poured concrete construction. • Install on wooden or steel concrete forms, once the forms are removed the boxes and conduit are buried in concrete and the end is open to the room wall or ceilin...
